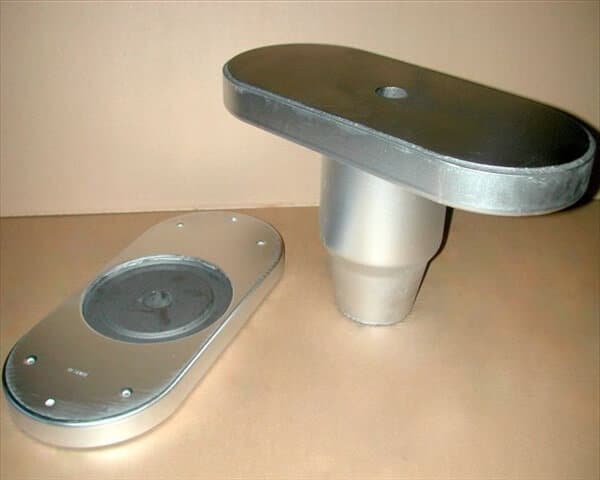

Slide gate plates are key functional refractories installed in the ladle or tundish slide gate system to control steel flow during casting. As flow-control components, they are subjected to extreme thermal, chemical, and mechanical stresses: high steel temperatures, erosive flow, oxidation, slag attack, mechanical abrasion, and frequent opening/closing cycles. Their lifespan directly affects casting sequence length, ladle turnaround time, production cost, and operational safety.
Improving slide gate plate life is therefore a critical objective for steel plants as it increases sequence casting lengths, reduces refractory consumption, and enhances steel cleanliness. Achieving long service life requires a combined approach involving raw material selection, plate design, production technology, preheating practices, operational discipline, and metallurgy control. This article provides a detailed and practical guide on how to extend slide gate plate life in modern steelmaking operations.1. Use High-Quality Raw Materials
The quality and selection of raw materials have the strongest influence on plate performance.1.1 High-Purity Alumina
Al₂O₃ content above 85–95% is essential for:
- High refractoriness
- Resistance to steel and slag erosion
- Dimensional stability at high temperature
Low impurities reduce unwanted reactions with molten steel and inclusions.1.2 Carbon and Antioxidants
Carbon enhances oxidation resistance and thermal shock resistance. In high-quality plates:
- Carbon content ranges from 5–20% depending on application.
- Antioxidants such as SiC, Al metal, Si metal, Mg metal, and BN improve stability.
Proper antioxidant blend minimizes oxidation, which is one of the main failure modes.1.3 Special Additives
To further extend life:
- Zirconia (ZrO₂) improves chemical resistance and wear resistance.
- Spinel-forming materials (MgO·Al₂O₃) help resist corrosion from Ca-treated steels.
- BN coatings are often applied to reduce friction and enhance smooth plate movement.
The raw material design must match steel grade, casting temperature, and sequence length.2. Use Advanced Manufacturing Technology
Manufacturing processes determine plate density, strength, porosity, and overall durability.2.1 Isostatic Pressing
Isostatic pressing creates higher density and more uniform microstructure than conventional pressing. Benefits include:
- Lower porosity
- Higher thermal shock resistance
- Improved erosion resistance
- More consistent material performance
Isostatic plates normally last significantly longer, especially in continuous casting applications.2.2 Optimized Firing Temperature
High-temperature firing produces:
- Strong ceramic bonds
- Lower microcracks
- Higher mechanical strength
Underfired plates degrade quickly because of insufficient bond formation.2.3 Strict Quality Control
Key tests include:
- Apparent porosity
- Bulk density
- Cold crushing strength
- Flexural strength
- Oxidation resistance
- Thermal shock resistance
Consistent production is essential to achieving predictable life cycles.3. Improve Plate and System Design
Beyond materials, engineering design of plates plays a major role.3.1 Proper Plate Thickness
Thicker plates withstand longer sequences but must fit system specifications. Overly thin plates fail easily; overly thick plates may cause improper movement or temperature gradients.3.2 Larger Bore and Optimized Geometry
Optimizing bore diameter, shape, and taper reduces:
- Steel velocity
- Turbulence
- Erosion at the plate’s critical hot face
Some designs use a conical bore to stabilize flow and minimize wear.3.3 Better Alignment and Contact Surface
Improper alignment between upper and lower plates causes:
- Uneven wear
- Groove formation
- Steel leakage risks
Precision machining of contact surfaces is essential to long service life.4. Proper Preheating Practices
Preheating slide gate plates is one of the simplest yet most effective ways to extend their life.4.1 Benefits of Proper Preheating
- Reduces thermal shock during first steel impact
- Drives out residual moisture
- Minimizes cracking and microfractures
- Enhances oxidation resistance
4.2 Best Preheating Practices
- Minimum 800–1000°C for ladle slide gates
- Slow and uniform heating
- Avoid direct flame impact on plate surfaces
- Maintain proper soak time before tapping
Extreme temperature jumps shorten plate life dramatically.5. Metallurgical Factors That Affect Plate Life
Operational metallurgy heavily influences erosion and oxidation rates.5.1 Steel Temperature
Higher temperatures increase:
- Erosion rates
- Chemical attack
- Thermal shock risk
Optimizing tapping and casting temperature directly contributes to longer plate life.5.2 Calcium Treatment Practice
Calcium treatment modifies inclusions but the resulting slag reacts differently with plates. Excessive Ca addition may:
- Accelerate erosion
- Increase chemical penetration
Coordinating Ca addition strategies with refractory design is essential.5.3 Slag Composition
High FeO and MnO slags are aggressive to slide gate plate materials. Lowering oxidizing slag components helps prevent chemical wear.6. Operational Practices and Maintenance
Even the best materials fail early if operational practices are poor.6.1 Smooth Opening and Closing
Abrupt movement or forceful operation causes:
- Mechanical abrasion
- Misalignment
- Premature wear
A well-maintained slide gate mechanism ensures smooth movement.6.2 Correct Torque Settings
Proper tightening torque:
- Prevents plate deformation
- Ensures uniform contact pressure
- Reduces risk of leakage
Torque must be set according to equipment manufacturer specifications.6.3 Cleanliness During Assembly
Before installation:
- Remove dust, moisture, or foreign materials
- Ensure surface flatness
- Apply BN or graphite lubrication as required
Even small debris can compromise plate contact and reduce service life.7. Using Compatible Refractory Components
Slide gate plate life is also influenced by associated refractories, such as:
- Nozzles (upper/lower)
- Ladle well blocks
- Collector nozzles
- Ladle shrouds
Incompatible combinations may cause:
- Mismatch in expansion rates
- Thermal stress concentration
- Different erosion patterns
Using a fully matched system from the same manufacturer often yields longer life.8. Regular Inspection & Failure Analysis
To continuously improve slide gate plate life, plants must analyze failure modes:Common Failure Mechanisms
- Thermal shock cracking
- Chemical erosion from slag/steel
- Oxidation-induced damage
- Mechanical abrasion
- Misalignment wear
- Grooving or channel formation
By identifying root causes, engineers can adjust:
- Materials
- Designs
- Operating practices
- Preheating procedures
Continuous improvement is the key to reaching optimal service life.9. Selecting a Reliable Slide Gate Plate Supplier
A long-lasting slide gate system requires a stable supplier who provides:
- High-purity materials
- Strong R&D capability
- Isostatic pressing technology
- Consistent quality control
- Technical support at the steel plant
- Ongoing improvement programs
Supplier partnership is essential; it is not just procurement but co-engineering cooperation.Conclusion
Improving the life of slide gate plates requires a holistic approach that integrates material science, manufacturing technology, operational practices, and metallurgical control. Raw material purity, isostatic pressing, optimized design, proper preheating, stable casting conditions, and strict operational discipline all contribute to longer life.
By coordinating refractory suppliers, steelmaking engineers, and maintenance teams, steel plants can significantly extend plate service life, reduce refractory consumption, enhance casting stability, and improve overall productivity. Long-term success comes from continuous monitoring, failure analysis, and refinement of both process and materials.
